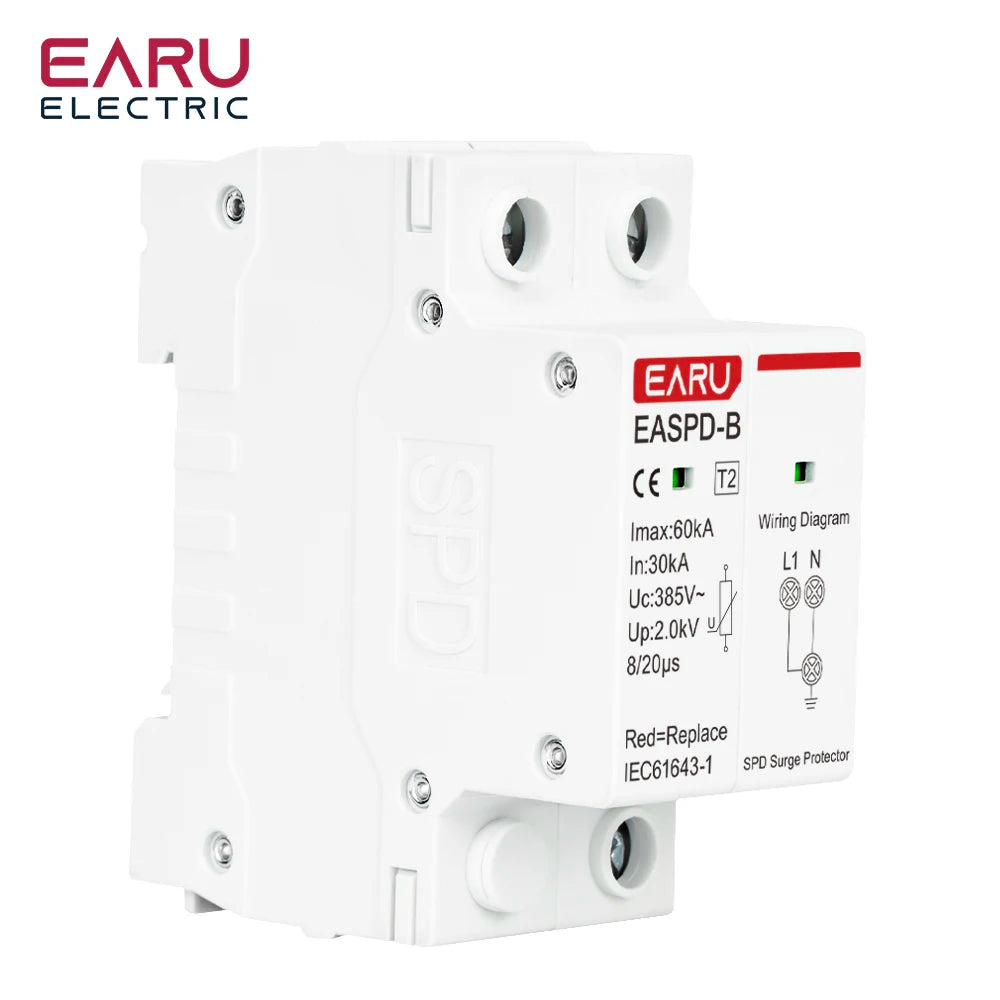

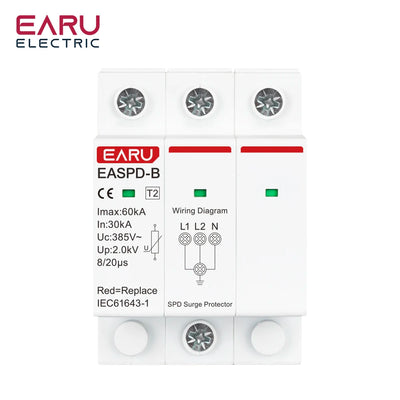

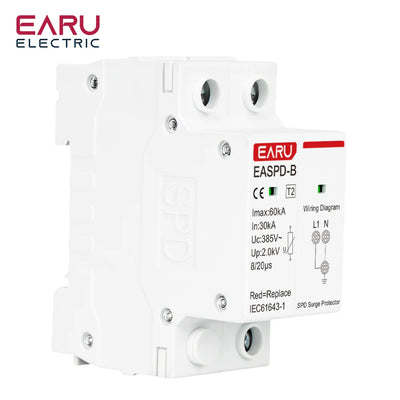

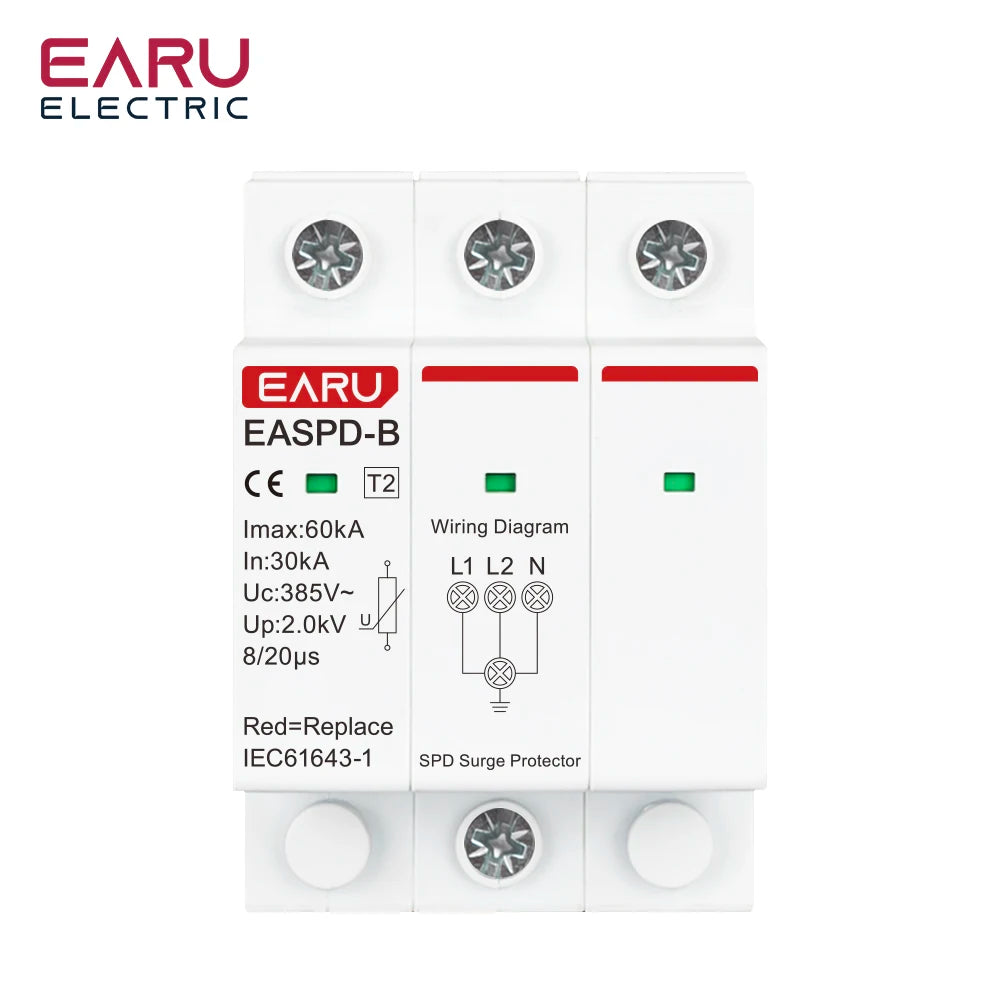

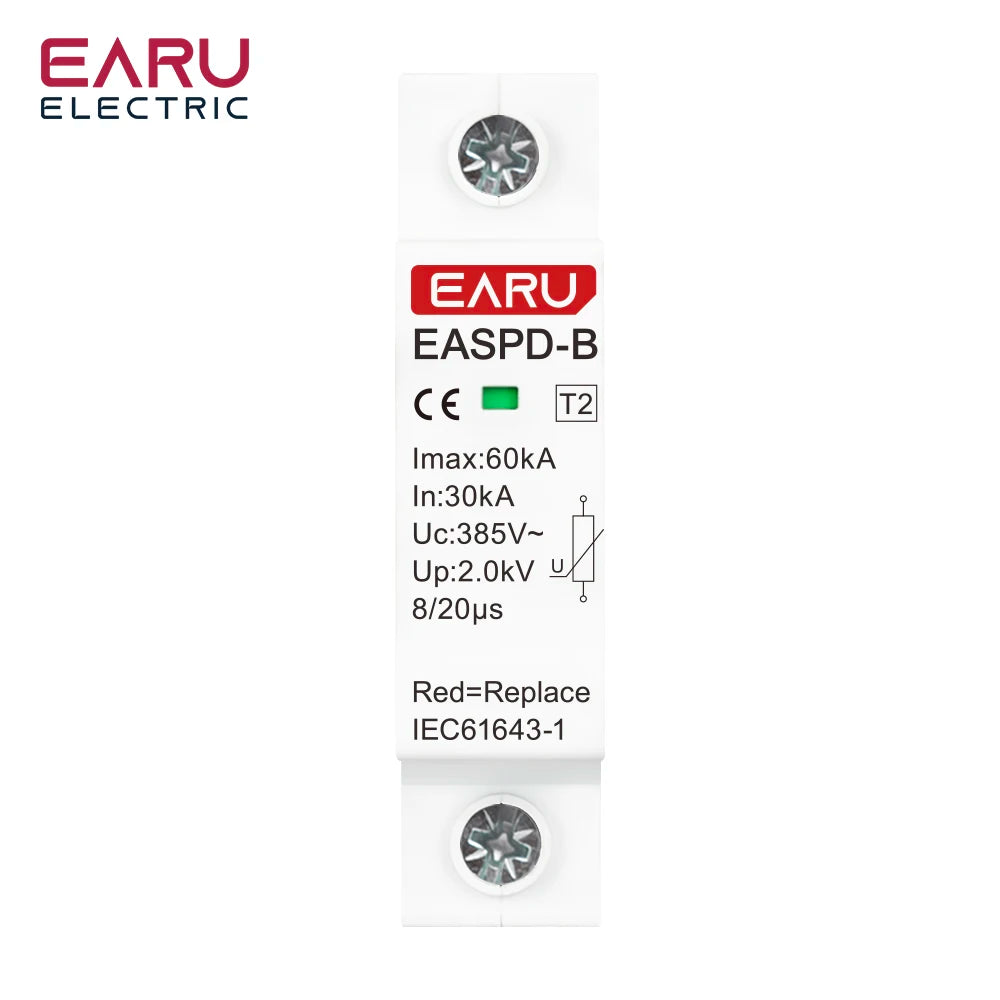

SPD Surge Protector Device Arrester Low Voltage House Surge Voltage Protection for AC Power 1P 2P 3P 4P 20KA-40KA 30KA-60KA
- Fast worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Brand Name: EARUELETRIC
Choice: yes
Hign-concerned Chemical: None
Is Smart Device: No
Max. Discharge Current: 40KA/60KA
Max.Continuous Operating Voltage (Uc): 385VAC
Model Number: EASPD-B
Nominal Discharge Current: 20KA/30KA

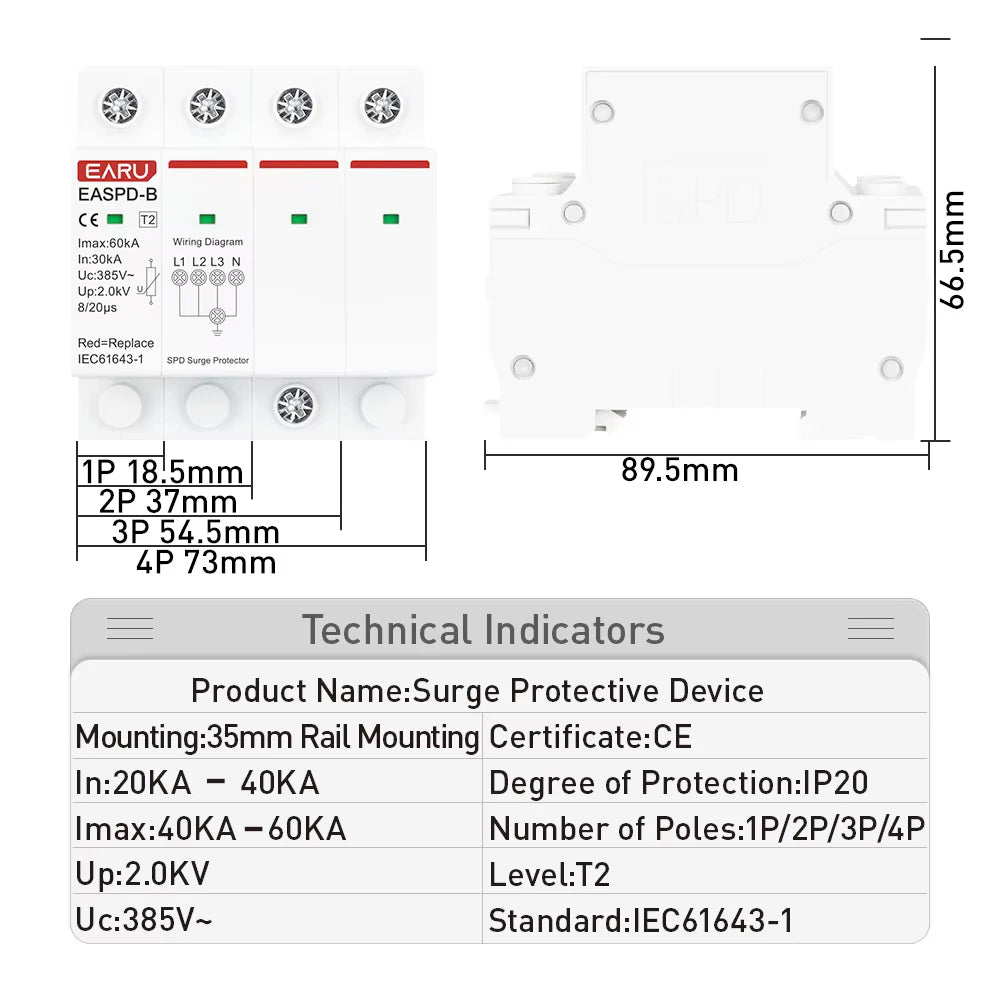

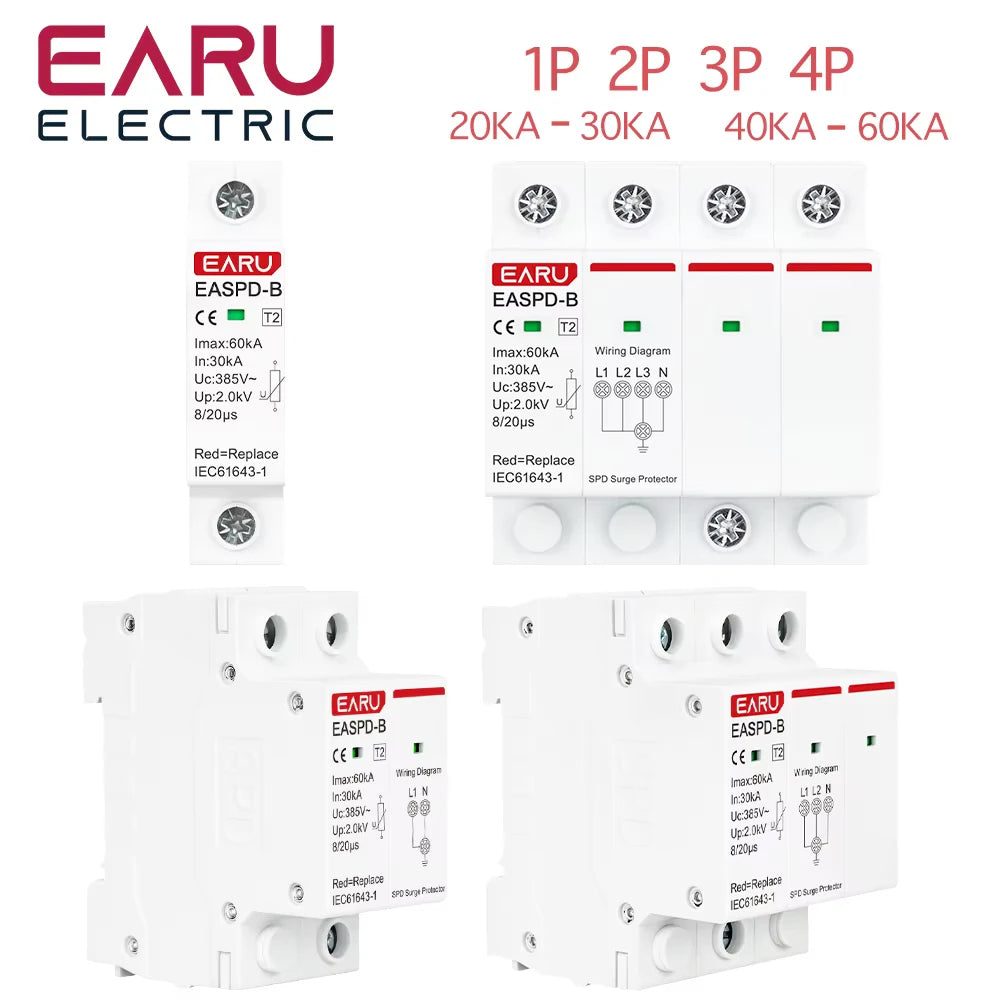

Number of poles: 1P 2P 3P 4P
Origin: Mainland China
Type: Mini
Voltage Protection Level( Up): 2.0KA
is_customized: Yes
semi_Choice: yes
Electric ratings: 240V/415V, AC50/60Hz, 3-phase;
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Standard: IEC/EN 61643-1

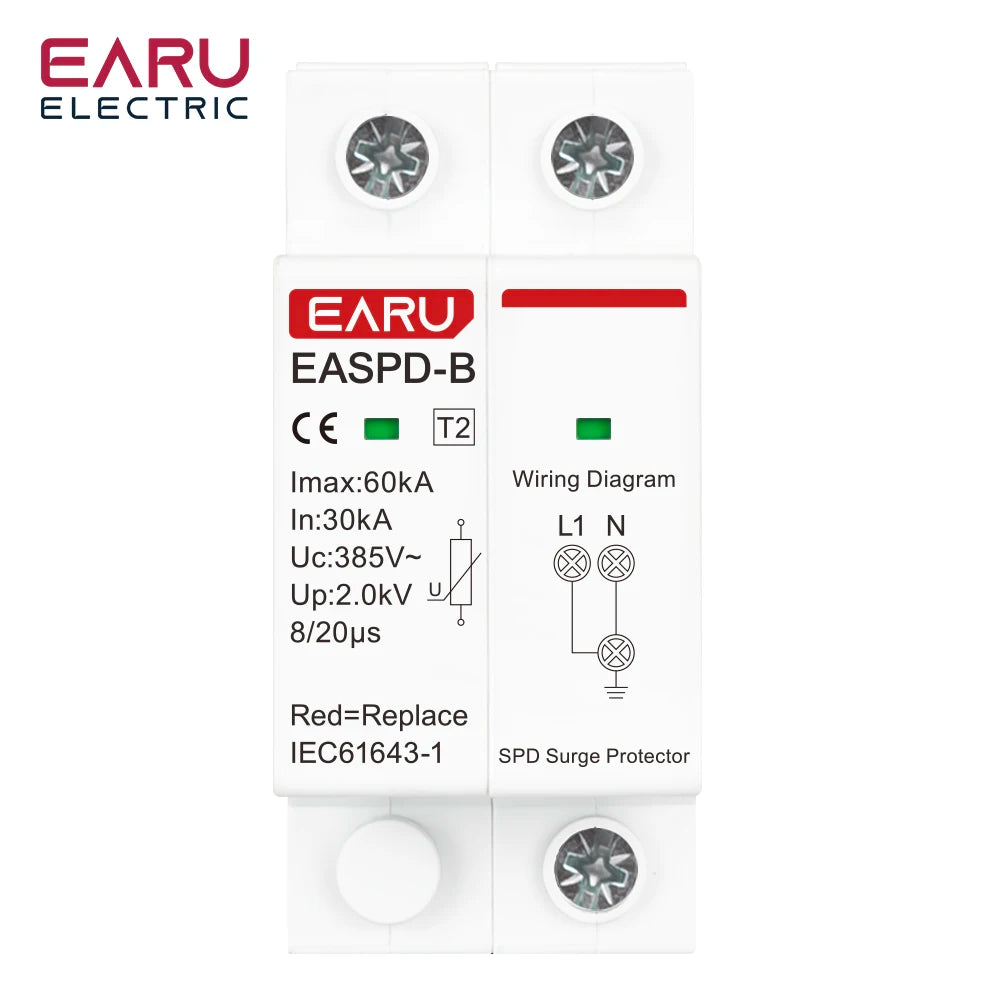

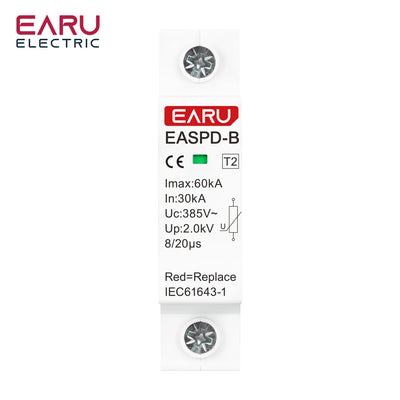

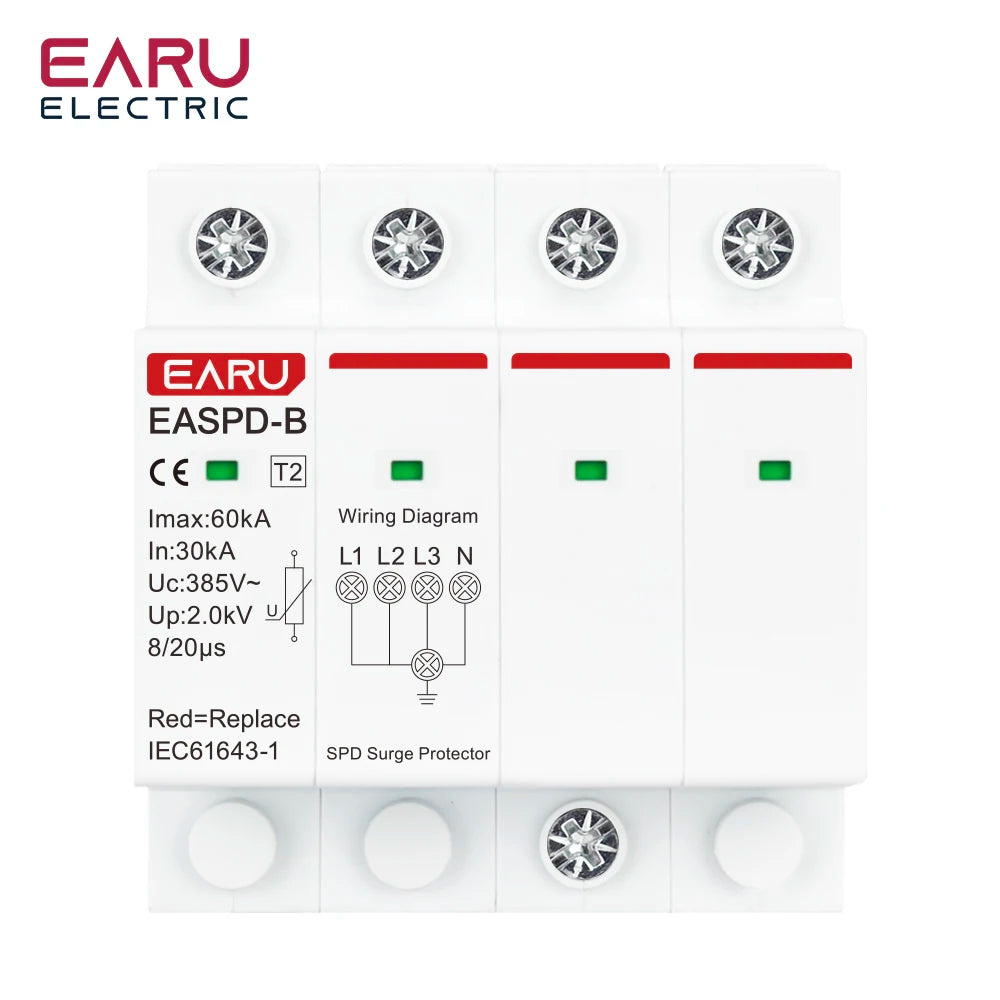

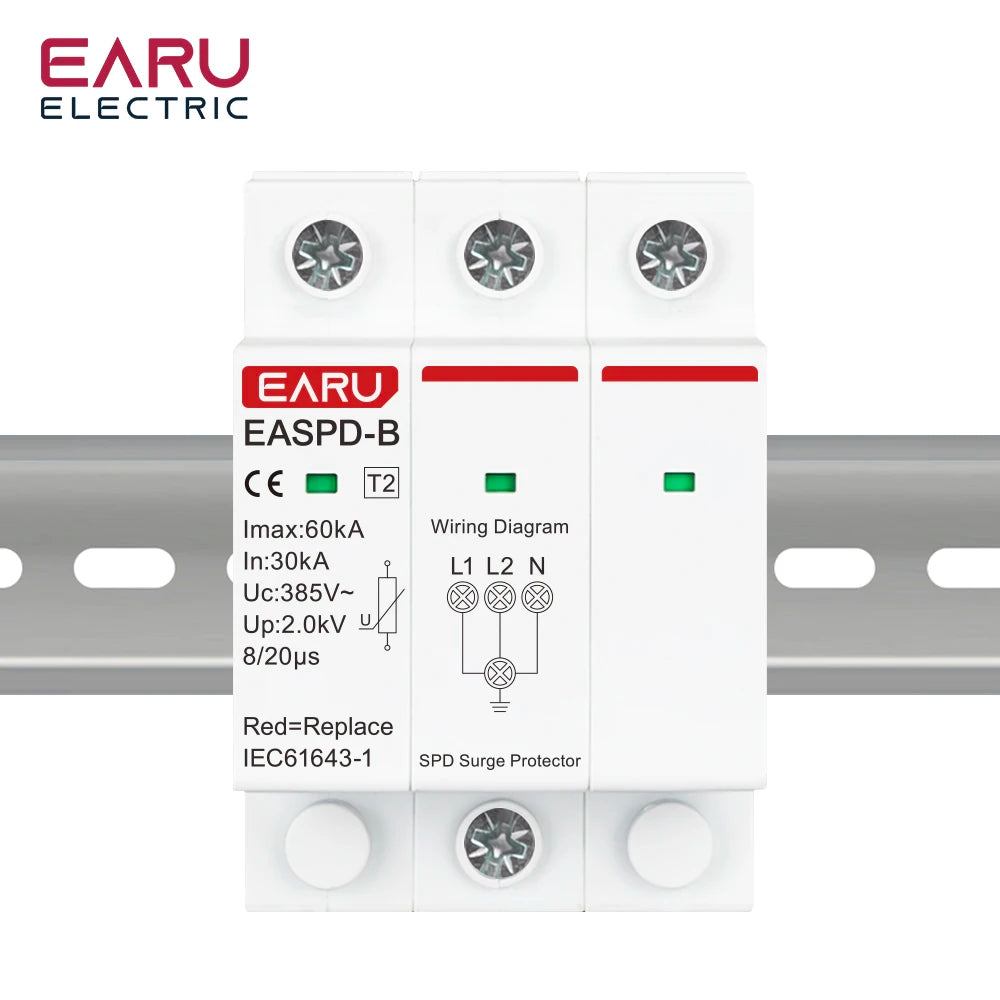

Number of poles: 1P, 2P,3P, 4P;
TYPE |
EASPD-B-40KA |
EASPD-B-60KA |
||
Max.Continuous Operating Voltage (Uc): |
~385VAC |
~385VAC |
||
Nominal Discharge Current (8/20μs) (In): |
20KA |
30KA |
||
Max. Discharge Current (8/20μs) (Imax.): |
40KA |
60KA |
||
Voltage Protection Level( Up): |
2.0KV |
2.0KV |
||
Response Time: |
< 25ns |
|||
Leakage current: |
≤20μA |
|||
Working Environment: |
Temperature -40°C +80°C; |
|||
Relative humidity<95%; | ||||

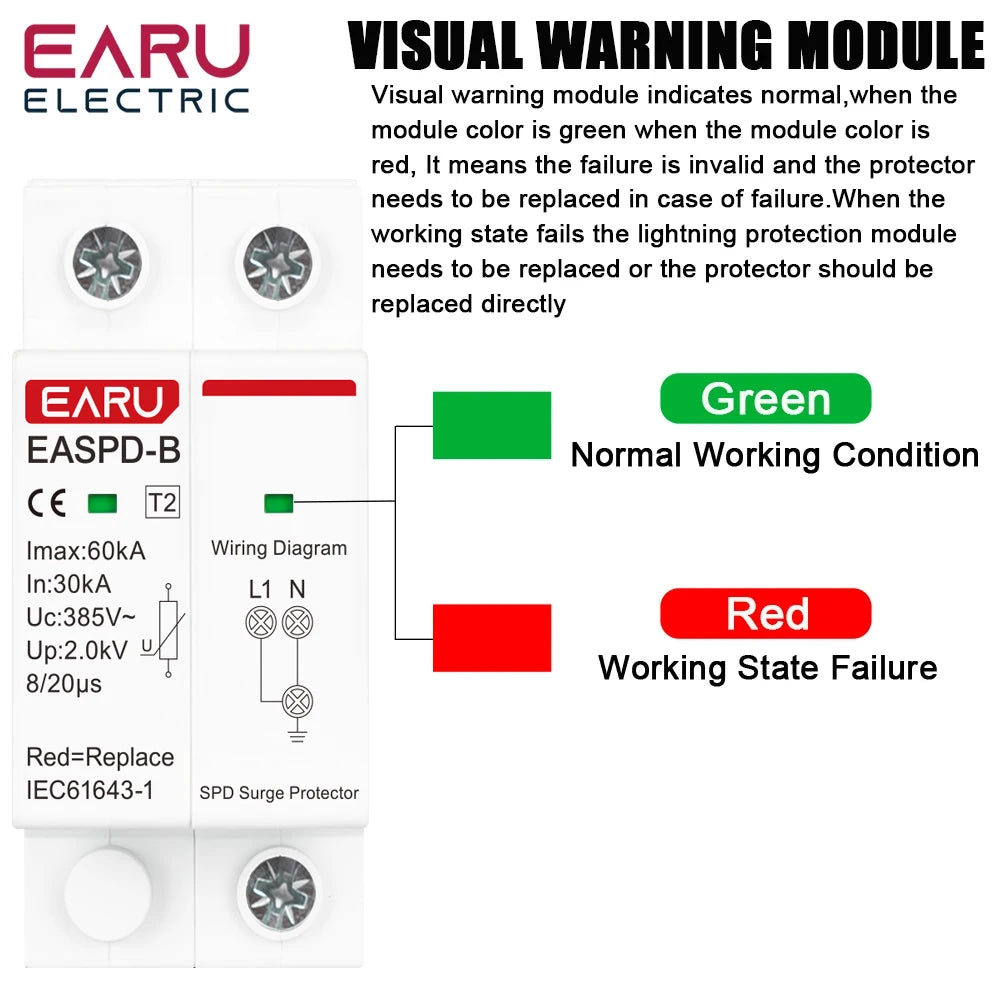

indicate deterioration: |
green(normal),red(malfunction) |
|||

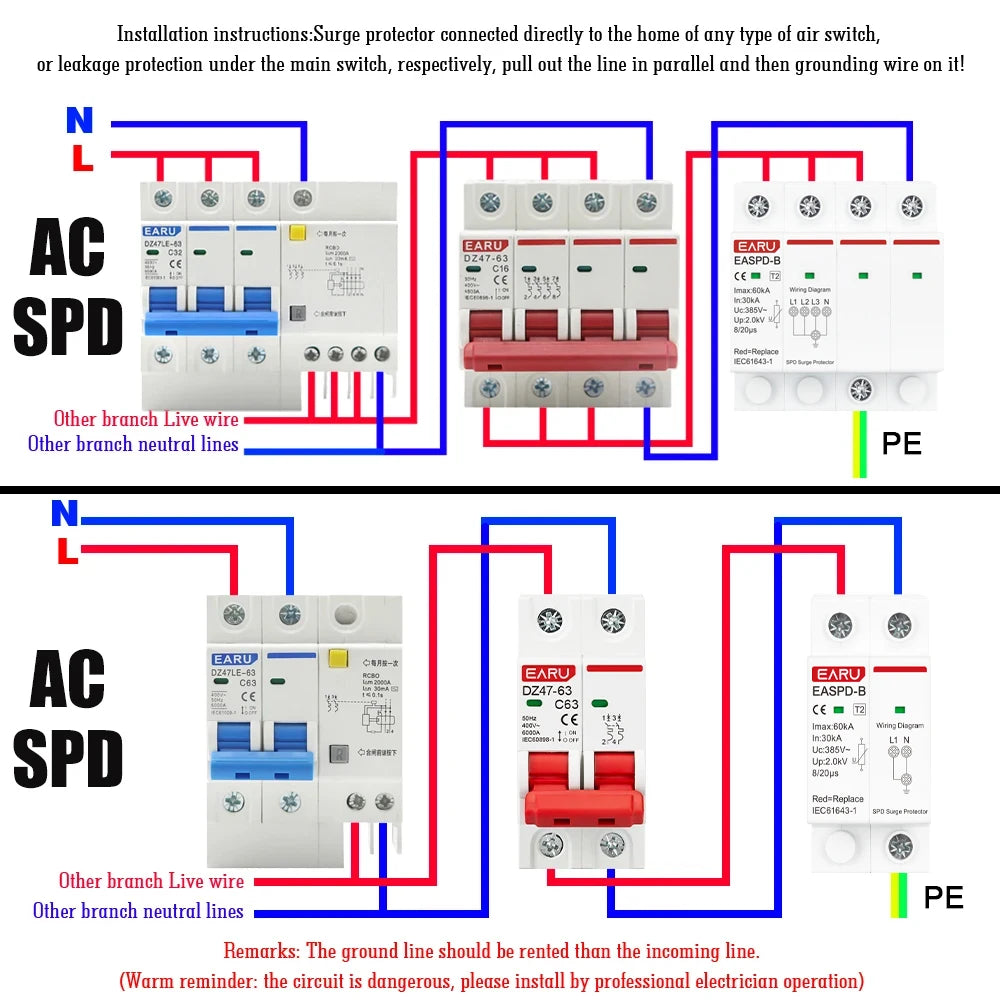

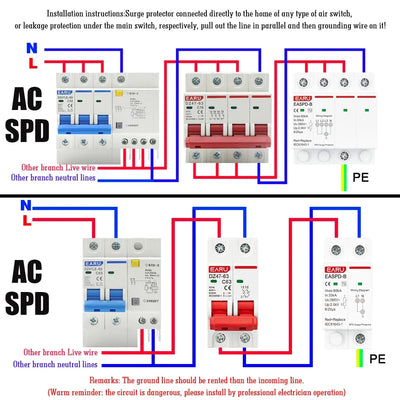

Protection Mode: |
L-PE,N-PE (1P, 2P,3P,3P+N) |
|||
Material of Outer Shell: |
Flame retardant materials |
|||
